Spray Gun Setup

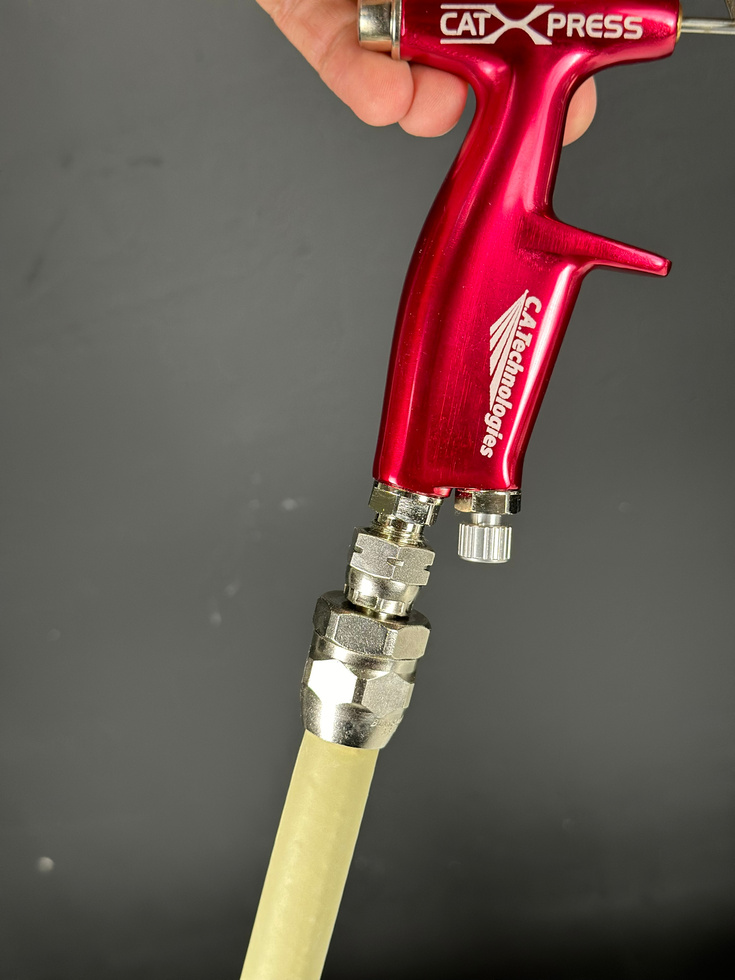

Connect the air hose

(air hose will be red or tan)

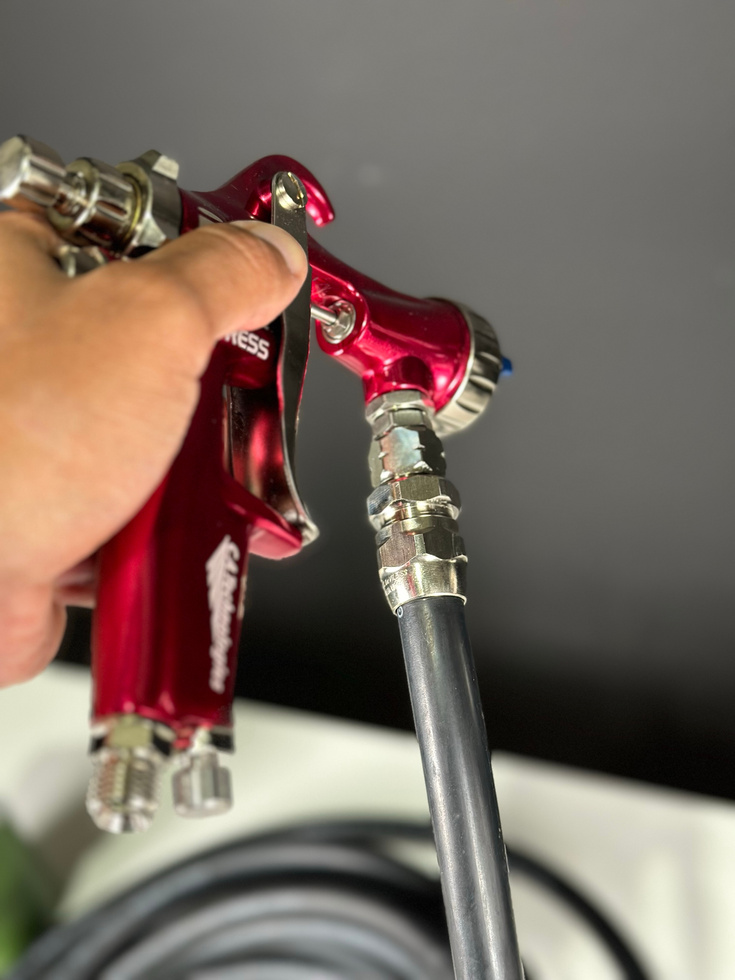

Connect the fluid hose

(fluid hose will be black)

Binks Tank Setup

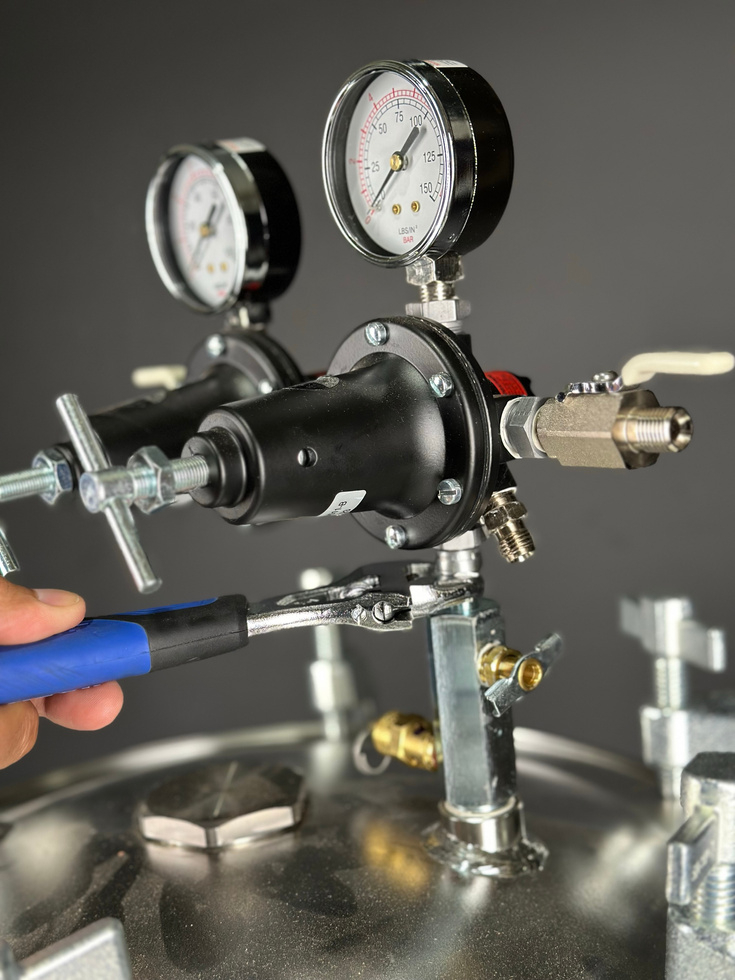

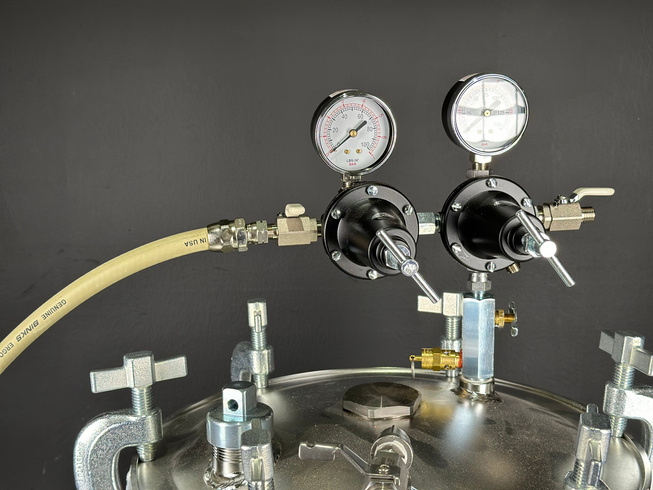

Connect Double Reg setup to ​air outlet of tank

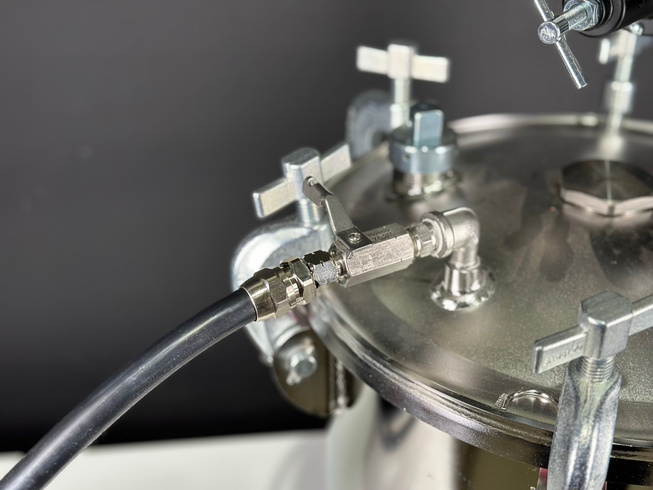

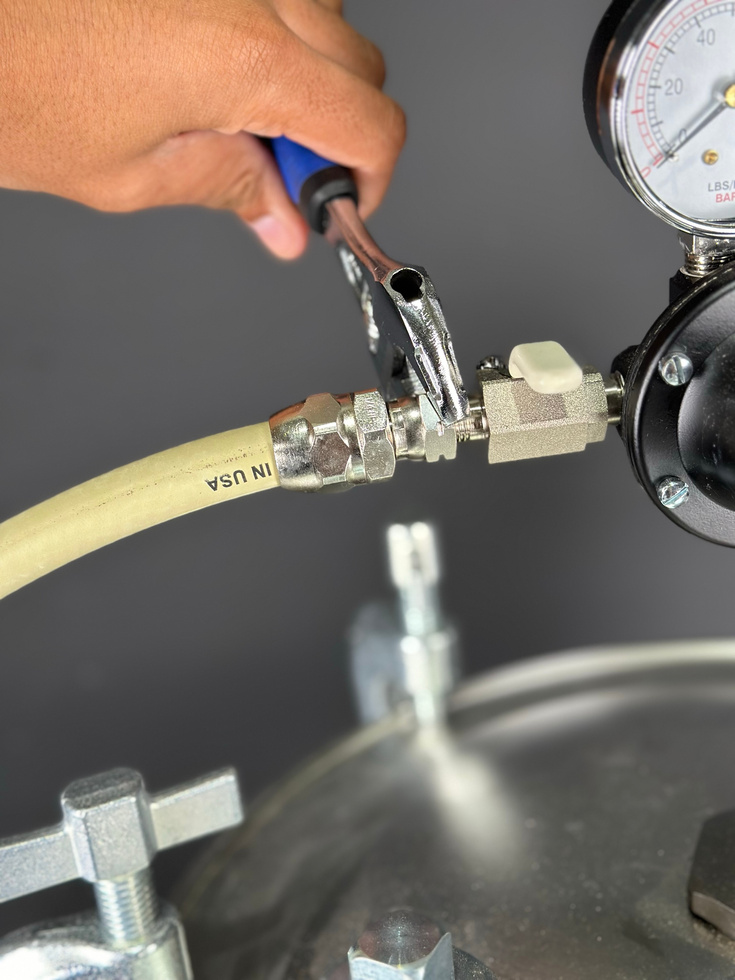

Connect air line to regulator

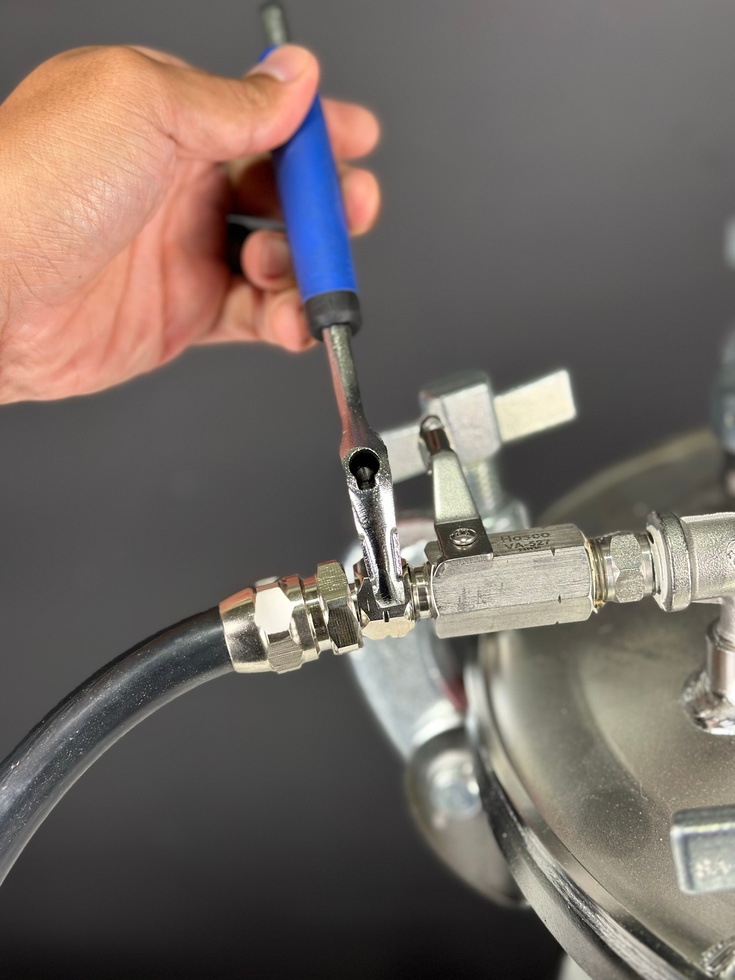

Connect fluid line to ball valve

ZIP 52 Setup

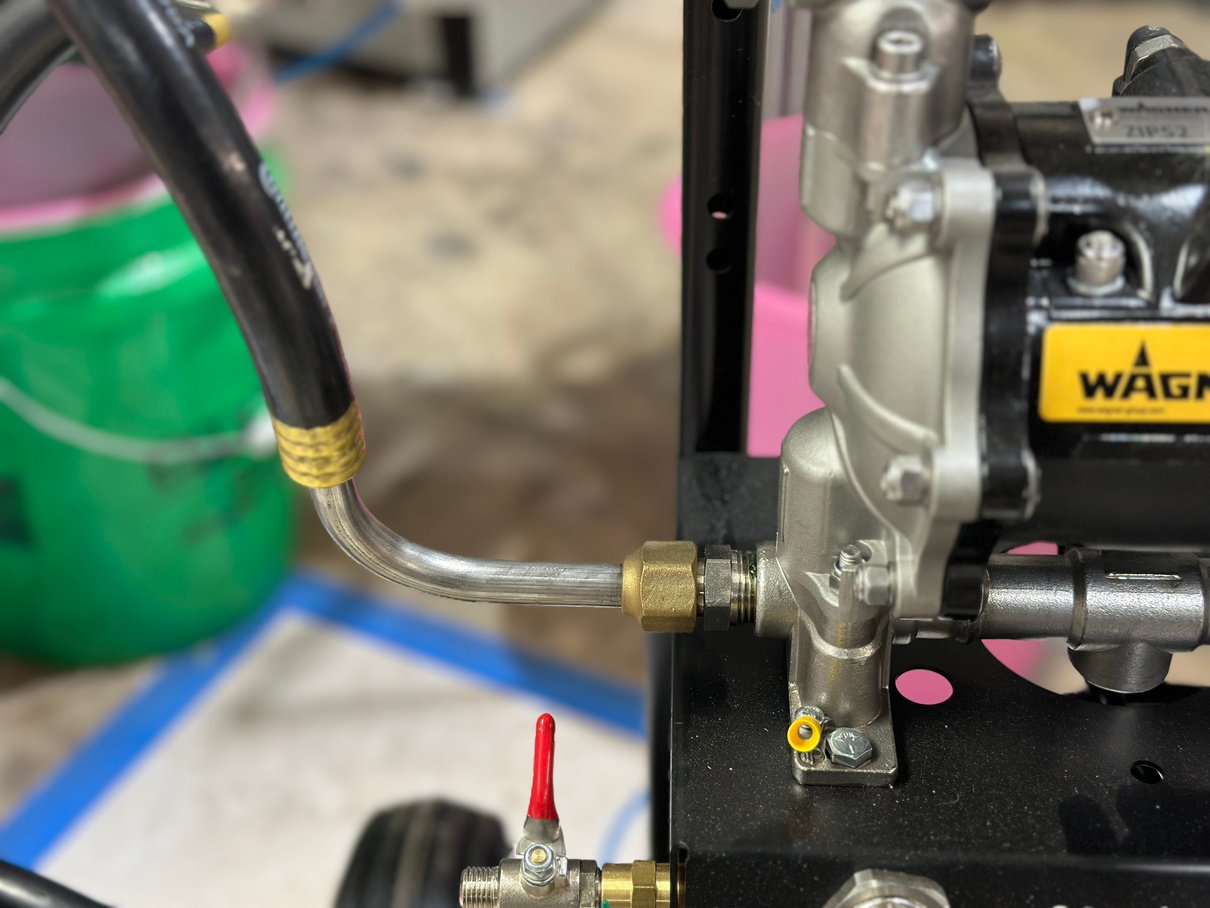

Connect pickup tube to ​bottom inlet of pump

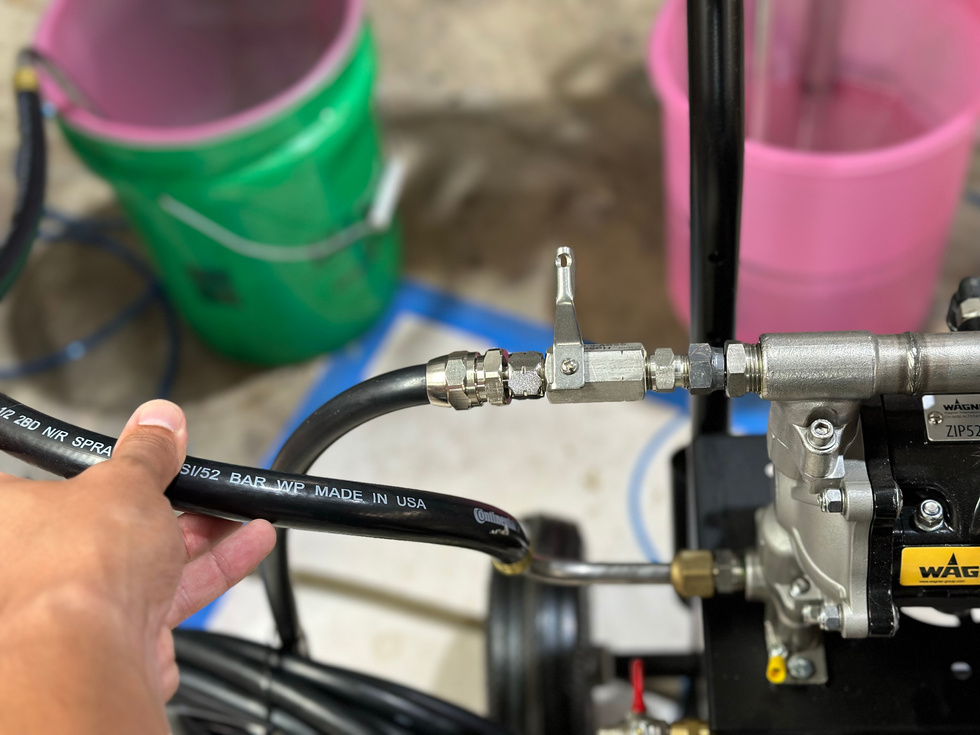

Connect fluid line to ball valve ​above the pickup tube. The ​other side goes to gun.

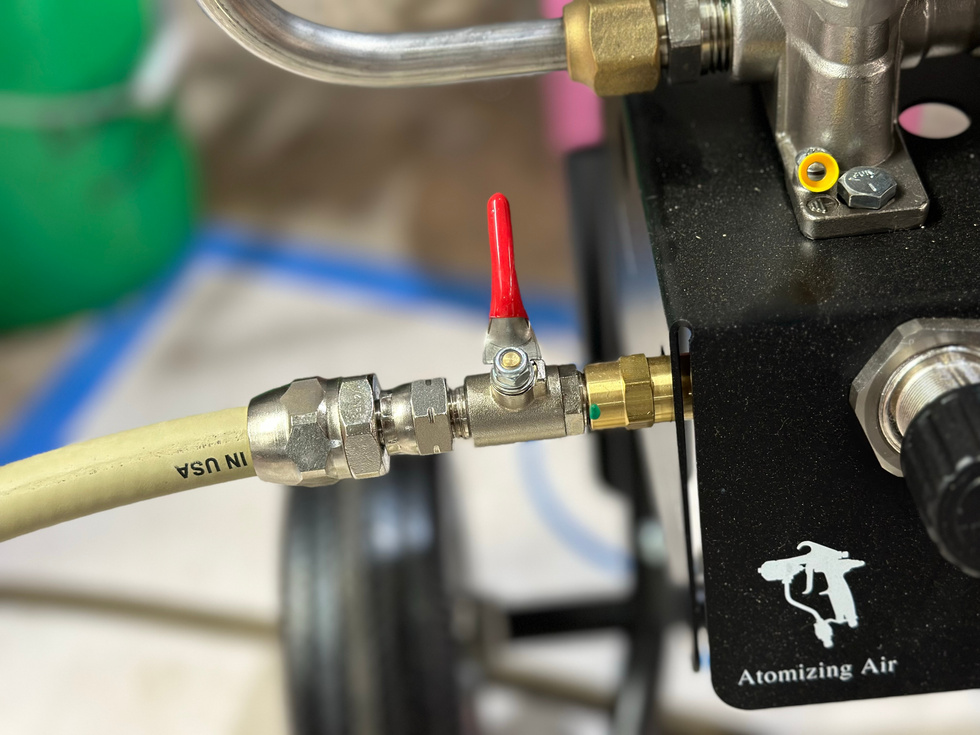

Connect air line to the ball ​valve labeled “atomizing air”. ​The other side goes to gun.

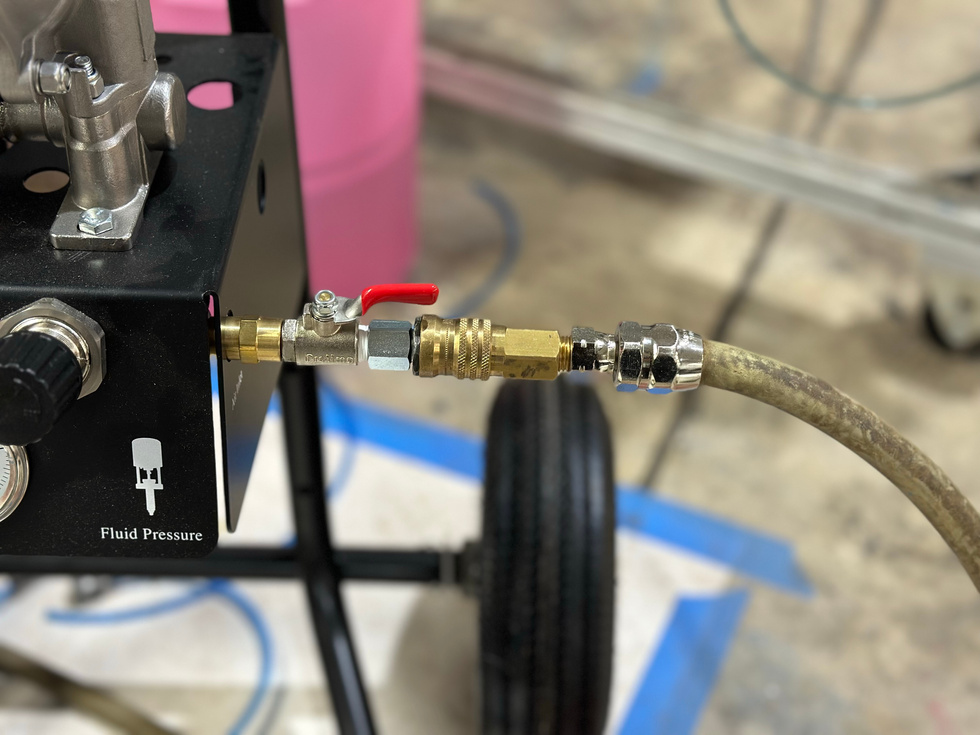

Connect shop air to the ball ​valve on the bottom labeled ​“Fluid Pressure”
